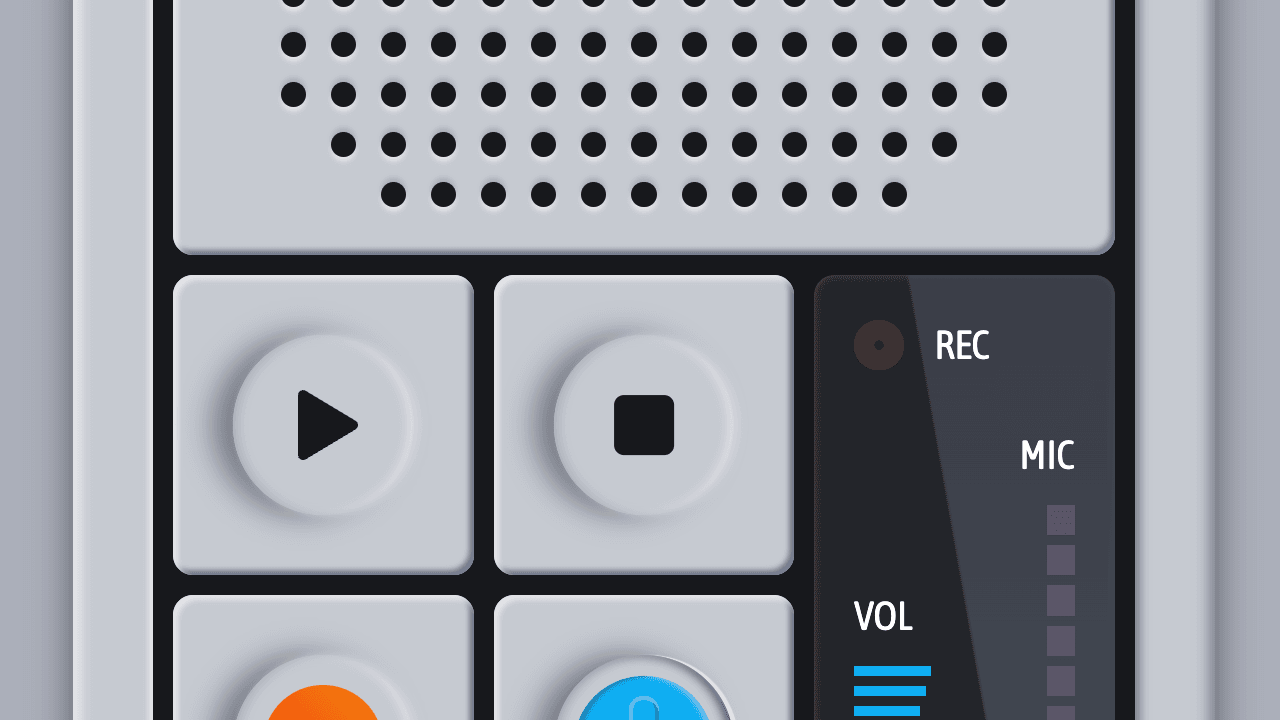

<title>实现一个简易录音机</title>
<meta
name="viewport"
content="width=device-width, initial-scale=1, viewport-fit=cover"
/>
<link
rel="stylesheet"
href="https://fonts.googleapis.com/css2?family=Asap+Condensed:wght@300;400&display=swap"
/>
<style>
* {
border: 0;
box-sizing: border-box;
margin: 0;
padding: 0;
}
:root {
--hue: 223;
--bg: hsl(var(--hue), 10%, 70%);
--fg: hsl(var(--hue), 10%, 10%);
--focus: hsl(var(--hue), 90%, 60%);
--focus-t: hsla(var(--hue), 90%, 60%, 0);
--red-orange: hsl(11, 90%, 50%);
--orange: hsl(21, 90%, 50%);
--yellow-orange: hsl(31, 90%, 50%);
--blue: hsl(198, 90%, 50%);
--purple: hsl(287, 40%, 70%);
--trans-dur: 0.3s;
font-size: calc(20px + (80 - 20) * (100vw - 280px) / (3840 - 280));
}
body,
button {
color: var(--fg);
font: 1em/1.5 'Asap Condensed', sans-serif;
}
body {
background-color: var(--bg);
overflow: hidden;
height: 100vh;
transition: background-color var(--trans-dur), color var(--trans-dur);
}
main {
display: flex;
overflow-x: hidden;
padding: 1.5em 0;
width: 100vw;
height: 100vh;
}
.tb1 {
--display-dim: 0.2;
border-radius: 0.75em;
box-shadow: 0.125em 0.125em 0.125em hsl(var(--hue), 10%, 90%) inset,
-0.0625em -0.0625em 0.1875em hsl(var(--hue), 10%, 50%) inset,
0 0 0.5em rgba(0, 0, 0, 0.5);
margin: auto;
padding: 1em;
width: 14.25em;
height: 15.75em;
transition: background-color var(--trans-dur),
box-shadow var(--trans-dur);
}
.tb1,
.tb1__cell {
background-color: hsl(var(--hue), 10%, 80%);
}
.tb1__bar {
background-color: currentColor;
height: 0.125em;
opacity: var(--display-dim);
transition: opacity calc(var(--trans-dur) / 2);
}
.tb1__bar--blue {
background-color: var(--blue);
}
.tb1__bar--purple {
background-color: var(--purple);
}
.tb1__bar--on {
opacity: 1;
}
.tb1__bar--tall {
height: 0.375em;
}
.tb1__bar--25p {
width: 25%;
}
.tb1__bar--30p {
width: 30%;
}
.tb1__bar--35p {
width: 35%;
}
.tb1__bar--40p {
width: 40%;
}
.tb1__bar--45p {
width: 45%;
}
.tb1__bar--50p {
width: 50%;
}
.tb1__bar--55p {
width: 55%;
}
.tb1__bar--60p {
width: 60%;
}
.tb1__bar--65p {
width: 65%;
}
.tb1__bar--70p {
width: 70%;
}
.tb1__bars {
display: flex;
gap: 0.125em;
flex-direction: column-reverse;
}
.tb1__bars + .tb1__bars {
align-items: flex-end;
}
.tb1__button,
.tb1__dial {
border-radius: 50%;
margin: auto;
width: 2.25em;
height: 2.25em;
}
.tb1__button,
.tb1__dial-control {
display: flex;
}
.tb1__button {
box-shadow: 0.0625em 0 0.125em hsl(var(--hue), 10%, 70%) inset,
-0.0625em 0 0.125em hsl(var(--hue), 10%, 90%) inset,
0.0625em 0 0.125em hsl(var(--hue), 10%, 85%),
-0.25em 0 0.375em rgba(0, 0, 0, 0.4);
transition: background-color var(--trans-dur),
box-shadow var(--trans-dur), color var(--trans-dur);
}
.tb1__cell {
border-radius: 0.25em;
box-shadow: 0 0 0 0.125em var(--focus-t),
0.0625em 0.0625em 0.0625em hsl(var(--hue), 10%, 90%) inset,
-0.0625em -0.0625em 0.0625em hsl(var(--hue), 10%, 50%) inset;
display: flex;
transition: background-color var(--trans-dur),
box-shadow var(--trans-dur),
transform calc(var(--trans-dur) / 3) cubic-bezier(0.65, 0, 0.35, 1);
}
.tb1__cell[type='button'] {
cursor: pointer;
}
.tb1__cell[type='button']:active {
transform: scale(0.95);
}
.tb1__cell[type='button']:focus-visible {
box-shadow: 0 0 0 0.125em var(--focus),
0.0625em 0.0625em 0.0625em hsl(var(--hue), 10%, 90%) inset,
-0.0625em -0.0625em 0.0625em hsl(var(--hue), 10%, 50%) inset;
}
.tb1__cell--display {
background-image: linear-gradient(
80deg,
hsl(var(--hue), 10%, 15%) 49%,
hsla(var(--hue), 10%, 15%, 0) 50%
),
linear-gradient(hsl(var(--hue), 10%, 25%), hsl(var(--hue), 10%, 30%));
box-shadow: 0 0 0.125em hsl(var(--hue), 10%, 30%) inset !important;
display: grid;
grid-column: 3;
grid-row-start: 2;
grid-row-end: 4;
grid-template-columns: repeat(2, 1fr);
grid-template-rows: 0.75em 1fr;
padding: 0.5em;
text-transform: uppercase;
}
.tb1__cell--speakers {
display: grid;
grid-column-start: 1;
grid-column-end: 4;
grid-template-columns: repeat(15, 0.625em);
grid-template-rows: repeat(7, 0.625em);
justify-content: center;
align-content: center;
place-items: center;
}
.tb1__dial {
box-shadow: 0.0625em 0 0.125em hsl(var(--hue), 10%, 70%) inset,
-0.0625em 0 0.125em hsl(var(--hue), 10%, 30%) inset,
0.0625em 0 0.0125em hsl(var(--hue), 10%, 90%),
-0.25em 0 0.375em rgba(0, 0, 0, 0.4);
transition: background-color var(--trans-dur),
box-shadow var(--trans-dur), color var(--trans-dur);
}
.tb1__dial-control {
--shadow-before-rotate: 0;
--shadow-after1-x: 1;
--shadow-after1-y: 1;
--shadow-after2-x: -1;
--shadow-after2-y: -1;
background-color: transparent;
border-radius: inherit;
box-shadow: 0 0 0 0.125em var(--focus-t);
cursor: grab;
position: relative;
transition: box-shadow var(--trans-dur);
width: 100%;
height: 100%;
}
.tb1__dial-control:active {
cursor: grabbing;
}
.tb1__dial-control:focus-visible {
box-shadow: 0 0 0 0.125em var(--focus);
}
.tb1__dial-control:before,
.tb1__dial-control:after {
background-color: var(--blue);
content: '';
display: block;
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
z-index: 1;
}
.tb1__dial-control:before {
border-radius: 50%;
box-shadow: 0.0625em 0 0.0625em rgba(0, 0, 0, 0.3) inset,
-0.0625em 0 0.0625em rgba(255, 255, 255, 0.3) inset;
width: 1.75em;
height: 1.75em;
transform: translate(-50%, -50%)
rotate(calc(1deg * var(--shadow-before-rotate)));
}
.tb1__dial-control:after {
border-radius: 0.1875em;
box-shadow: 2px 0 0 hsl(var(--hue), 10%, var(--shadow-after1-x)) inset,
0 2px 0 hsl(var(--hue), 10%, var(--shadow-after1-y)) inset,
-2px 0 0 hsl(var(--hue), 10%, var(--shadow-after2-x)) inset,
0 -2px 0 hsl(var(--hue), 10%, var(--shadow-after2-y)) inset;
opacity: 0.4;
width: 0.375em;
height: 1.25em;
}
.tb1__cell[type='button'],
.tb1__dial-control {
outline: 0;
-webkit-appearance: none;
appearance: none;
-webkit-tap-highlight-color: transparent;
}
.tb1__display-label {
color: white;
display: block;
font-size: 0.5em;
line-height: 2;
}
.tb1__grid {
background-color: hsl(var(--hue), 10%, 10%);
border-radius: 0.25em;
box-shadow: -0.0625em -0.0625em 0.0625em hsl(var(--hue), 10%, 90%),
0.0625em 0.0625em 0.125em hsl(var(--hue), 10%, 50%);
display: grid;
gap: 0.25em;
grid-template-columns: repeat(3, 1fr);
grid-template-rows: 1fr repeat(2, 3.75em);
padding: 0.25em;
width: 100%;
height: 100%;
transition: box-shadow var(--trans-dur);
}
.tb1__icon {
display: block;
margin: auto;
width: 1.5em;
height: 1.5em;
}
.tb1__rec {
display: flex;
align-items: center;
gap: 0.375rem;
grid-column-start: 1;
grid-column-end: 3;
}
.tb1__rec-light {
border-radius: 50%;
box-shadow: 0 0 0 0.25rem var(--orange) inset;
display: block;
opacity: var(--display-dim);
transition: opacity calc(var(--trans-dur) / 2);
width: 0.625rem;
height: 0.625rem;
}
.tb1__rec-light--on {
opacity: 1;
}
.tb1__speaker-hole {
background-color: hsl(var(--hue), 10%, 10%);
border-radius: 50%;
box-shadow: 0 -0.0625em 0.0625em hsl(var(--hue), 10%, 70%),
0 0.0625em 0.0625em hsl(var(--hue), 10%, 90%);
width: 50%;
height: 50%;
transition: box-shadow var(--trans-dur);
}
.tb1__speaker-hole:first-child,
.tb1__speaker-hole:nth-child(83) {
grid-column: 3;
}
.tb1__speaker-hole:nth-child(12),
.tb1__speaker-hole:nth-child(70) {
grid-column: 2;
}
.tb1__speaker-hole:nth-child(25) {
grid-column: 1;
}
.tb1__sr-only {
position: absolute;
overflow: hidden;
width: 1px;
height: 1px;
}
@media (prefers-color-scheme: dark) {
:root {
--bg: hsl(var(--hue), 10%, 20%);
--fg: hsl(var(--hue), 10%, 90%);
}
.tb1 {
box-shadow: 0.125em 0.125em 0.125em hsl(var(--hue), 10%, 40%) inset,
-0.0625em -0.0625em 0.1875em hsl(var(--hue), 10%, 20%) inset,
0 0 0.5em rgba(0, 0, 0, 0.5);
}
.tb1,
.tb1__cell {
background-color: hsl(var(--hue), 10%, 30%);
}
.tb1__button {
box-shadow: 0.0625em 0 0.125em hsl(var(--hue), 10%, 20%) inset,
-0.0625em 0 0.125em hsl(var(--hue), 10%, 40%) inset,
0.0625em 0 0.125em hsl(var(--hue), 10%, 35%),
-0.25em 0 0.375em rgba(0, 0, 0, 0.4);
}
.tb1__cell {
box-shadow: 0 0 0 0.125em var(--focus-t),
0.0625em 0.0625em 0.0625em hsl(var(--hue), 10%, 40%) inset,
-0.0625em -0.0625em 0.0625em hsl(var(--hue), 10%, 20%) inset;
}
.tb1__cell[type='button']:focus-visible {
box-shadow: 0 0 0 0.125em var(--focus),
0.0625em 0.0625em 0.0625em hsl(var(--hue), 10%, 40%) inset,
-0.0625em -0.0625em 0.0625em hsl(var(--hue), 10%, 20%) inset;
}
.tb1__dial {
box-shadow: 0.0625em 0 0.125em hsl(var(--hue), 10%, 30%) inset,
-0.0625em 0 0.125em hsl(var(--hue), 10%, 10%) inset,
0.0625em 0 0.0125em hsl(var(--hue), 10%, 40%),
-0.25em 0 0.375em rgba(0, 0, 0, 0.4);
}
.tb1__grid {
box-shadow: -0.0625em -0.0625em 0.0625em hsl(var(--hue), 10%, 40%),
0.0625em 0.0625em 0.125em hsl(var(--hue), 10%, 20%);
}
.tb1__speaker-hole {
box-shadow: 0 -0.0625em 0.0625em hsl(var(--hue), 10%, 30%),
0 0.0625em 0.0625em hsl(var(--hue), 10%, 50%);
}
}
</style>
</head>
<body>
<div id="root"></div>
<script type="module">
import React, {
StrictMode,
useEffect,
useRef,
useState,
} from 'https://esm.sh/react';
import { createRoot } from 'https://esm.sh/react-dom/client';
import gsap from 'https://esm.sh/gsap';
import { useGSAP } from 'https://esm.sh/@gsap/react?deps=react@18.3.1';
import { Draggable } from 'https://esm.sh/gsap/Draggable';
gsap.registerPlugin(useGSAP, Draggable);
createRoot(document.getElementById('root')).render(
React.createElement(
StrictMode,
null,
React.createElement(
'main',
null,
React.createElement(IconSprites, null),
React.createElement(TB1, null)
)
)
);
function IconSprites() {
const viewBox = '0 0 24 24';
return React.createElement(
'svg',
{ width: '0', height: '0', 'aria-hidden': 'true' },
React.createElement(
'defs',
null,
React.createElement(
'clipPath',
{ id: 'record-clip' },
React.createElement('circle', { cx: '12', cy: '12', r: '12' })
),
React.createElement(
'linearGradient',
{ id: 'record-grad', x1: '1', y1: '0', x2: '0', y2: '1' },
React.createElement('stop', { offset: '0%', stopColor: '#000' }),
React.createElement('stop', { offset: '100%', stopColor: '#fff' })
),
React.createElement(
'mask',
{ id: 'record-mask' },
React.createElement('rect', {
x: '0',
y: '0',
width: '24',
height: '24',
fill: 'url(#record-grad)',
})
)
),
React.createElement(
'symbol',
{ id: 'play', viewBox: viewBox },
React.createElement('polygon', {
points: '8 6,18 12,8 18',
fill: 'currentcolor',
stroke: 'currentcolor',
strokeLinejoin: 'round',
strokeWidth: '2',
})
),
React.createElement(
'symbol',
{ id: 'record', viewBox: viewBox },
React.createElement(
'g',
{
clipPath: 'url(#record-clip)',
fill: 'none',
strokeWidth: '18',
},
React.createElement('circle', {
cx: '12',
cy: '12',
r: '12',
stroke: 'var(--yellow-orange)',
}),
React.createElement(
'g',
{ mask: 'url(#record-mask)' },
React.createElement('circle', {
cx: '12',
cy: '12',
r: '12',
stroke: 'var(--red-orange)',
})
)
)
),
React.createElement(
'symbol',
{ id: 'stop', viewBox: viewBox },
React.createElement('rect', {
fill: 'currentcolor',
rx: '2',
ry: '2',
x: '6',
y: '6',
width: '12',
height: '12',
})
)
);
}
function TB1() {
const [playing, setPlaying] = useState(false);
const [recording, setRecording] = useState(false);
const [volume, setVolume] = useState(10);
const volumeBars = 10;
const [micLevel, setMicLevel] = useState(0);
const micBars = 9;
const recorder = useRef(null);
const audio = useRef(null);
const frameId = useRef(0);
useEffect(() => {
if (!recording) {
const stopRecording = async () => {
var _a;
audio.current = await ((_a = recorder.current) === null ||
_a === void 0
? void 0
: _a.stop());
setMicLevel(0);
cancelAnimationFrame(frameId.current);
};
stopRecording();
return;
}
const audioCtx = new AudioContext();
let analyser;
let bufferLength;
let frequencyData;
let waveData;
const analyzeAudio = (stream) => {
analyser = audioCtx.createAnalyser();
analyser.smoothingTimeConstant = 0.75;
analyser.fftSize = 1024;
bufferLength = analyser.frequencyBinCount;
frequencyData = new Uint8Array(bufferLength);
waveData = new Uint8Array(bufferLength);
const source = audioCtx.createMediaStreamSource(stream);
source.connect(analyser);
getMicLevel();
};
const getMicLevel = () => {
analyser.getByteFrequencyData(frequencyData);
analyser.getByteTimeDomainData(waveData);
const level = Math.round((frequencyData[0] / 255) * micBars);
setMicLevel(level);
frameId.current = requestAnimationFrame(getMicLevel);
};
const recordAudio = async () => {
return await navigator.mediaDevices
.getUserMedia({ audio: true, video: false })
.then(
(stream) =>
new Promise((resolve) => {
const mimeTypes = ['audio/mp4', 'audio/ogg'];
const mimeType = mimeTypes.find((type) =>
MediaRecorder.isTypeSupported(type)
);
const recorder = new MediaRecorder(stream, { mimeType });
const chunks = [];
recorder.addEventListener('dataavailable', (e) => {
var _a;
if (
((_a = e.data) === null || _a === void 0
? void 0
: _a.size) > 0
)
chunks.push(e.data);
});
const start = () => recorder.start(500);
const stop = async () =>
await new Promise((resolve) => {
recorder.addEventListener('stop', () => {
const blob = new Blob(chunks, { type: mimeType });
const url = URL.createObjectURL(blob);
const audio = new Audio(url);
const play = () => audio.play();
const stop = () => {
audio.pause();
audio.currentTime = 0;
};
const volumeTo = (volume) => {
audio.volume = volume;
};
audio.addEventListener('pause', () =>
setPlaying(false)
);
audio.addEventListener('ended', () => stop());
stream.getTracks().forEach((track) => track.stop());
resolve({ blob, url, play, stop, volumeTo });
});
recorder.stop();
});
resolve({ start, stop, stream });
})
)
.catch(() => setRecording(false));
};
const startRecording = async () => {
recorder.current = await recordAudio();
if (!recorder.current) return;
recorder.current.start();
analyzeAudio(recorder.current.stream);
};
startRecording();
return () => cancelAnimationFrame(frameId.current);
}, [recording]);
useEffect(() => {
if (!audio.current) return;
audio.current.volumeTo(volume / volumeBars);
}, [volume]);
async function play() {
var _a;
if (recording || playing) return;
try {
setPlaying(true);
await ((_a = audio.current) === null || _a === void 0
? void 0
: _a.play());
} catch (_b) {
setPlaying(false);
}
}
function stop() {
var _a;
if (recording || !playing) return;
(_a = audio.current) === null || _a === void 0 ? void 0 : _a.stop();
}
function record() {
var _a;
if (!navigator.mediaDevices) {
alert('Connection isn’t secure for recording!');
return;
}
stop();
setRecording(!recording);
if (recording) return;
(_a = audio.current) === null || _a === void 0
? void 0
: _a.volumeTo(volume / volumeBars);
}
return React.createElement(
'div',
{ className: 'tb1' },
React.createElement(
TB1Grid,
null,
React.createElement(TB1Speakers, null),
React.createElement(
TB1Button,
{ icon: 'play', action: play },
'Play'
),
React.createElement(
TB1Button,
{ icon: 'stop', action: stop },
'Stop'
),
React.createElement(
TB1Display,
null,
React.createElement(TB1Rec, { recording: recording }),
React.createElement(TB1Bars, {
color: 'blue',
label: 'Vol',
level: volume,
levels: volumeBars,
}),
React.createElement(TB1Bars, {
color: 'purple',
label: 'Mic',
level: micLevel,
levels: micBars,
tall: true,
})
),
React.createElement(
TB1Button,
{ icon: 'record', action: record },
'Record'
),
React.createElement(
TB1Dial,
{ tick: volume, ticks: volumeBars, action: setVolume },
'Volume'
)
)
);
}
function TB1Bars({ color, label, level = 0, levels = 0, tall }) {
const bars = [];
for (let l = 0; l < levels; ++l) {
const _color = color ? ` tb1__bar--${color}` : '';
const _tall = tall ? ' tb1__bar--tall' : '';
const _on = l < Math.round(level) ? ' tb1__bar--on' : '';
const width = !tall ? ` tb1__bar--${25 + l * 5}p` : ' tb1__bar--25p';
bars.push(
React.createElement('div', {
key: l,
className: `tb1__bar${_color}${_tall}${_on}${width}`,
})
);
}
return React.createElement(
'div',
{ className: 'tb1__bars' },
bars,
React.createElement(
'span',
{ className: 'tb1__display-label' },
label
)
);
}
function TB1Button({ action, children, icon }) {
return React.createElement(
'button',
{ className: 'tb1__cell', type: 'button', onClick: action },
React.createElement(
'div',
{ className: 'tb1__button' },
React.createElement(
'svg',
{
className: 'tb1__icon',
width: '20px',
height: '20px',
'aria-hidden': 'true',
},
React.createElement('use', { href: `#${icon}` })
),
React.createElement('span', { className: 'tb1__sr-only' }, children)
)
);
}
function TB1Dial({ action, children, tick, ticks }) {
const dialRef = useRef(null);
const startAngle = (tick / ticks) * 360;
const [angle, setAngle] = useState(startAngle);
const [isKeyDown, setIsKeydown] = useState(false);
const _tick = (angle / 360) * ticks;
const percent = `${Math.round((angle / 360) * 100)}%`;
const toRad = Math.PI / 180;
const shadowRotate = {
'--shadow-before-rotate': -angle,
'--shadow-after1-x': `${
(Math.cos((-45 + angle) * toRad) / 2 + 0.5) * 100
}%`,
'--shadow-after1-y': `${
(Math.cos((45 + angle) * toRad) / 2 + 0.5) * 100
}%`,
'--shadow-after2-x': `${
(-Math.cos((-45 + angle) * toRad) / 2 + 0.5) * 100
}%`,
'--shadow-after2-y': `${
(-Math.cos((45 + angle) * toRad) / 2 + 0.5) * 100
}%`,
};
useEffect(() => {
action === null || action === void 0 ? void 0 : action(_tick);
}, [action, _tick]);
useEffect(() => {
Draggable.create(dialRef.current, {
type: 'rotation',
bounds: {
minRotation: 0,
maxRotation: 360,
},
onDrag: function () {
setAngle(this.rotation);
},
});
}, []);
useGSAP(() => {
if (isKeyDown) {
gsap.to(dialRef.current, {
rotation: angle,
duration: 0.15,
});
}
}, [angle]);
useGSAP(() => {
gsap.to(dialRef.current, {
rotation: startAngle,
duration: 0,
});
}, []);
function tickDecrement() {
let previousTick = _tick - 1;
if (previousTick < 0) {
previousTick = 0;
}
setAngle((previousTick / ticks) * 360);
}
function tickIncrement() {
let nextTick = _tick + 1;
if (nextTick > ticks) {
nextTick = ticks;
}
setAngle((nextTick / ticks) * 360);
}
function keyboardAction(e) {
const increment = e.code === 'ArrowUp' || e.code === 'ArrowRight';
const decrement = e.code === 'ArrowDown' || e.code === 'ArrowLeft';
if (increment || decrement) {
e.preventDefault();
setIsKeydown(true);
}
if (increment) {
tickIncrement();
} else if (decrement) {
tickDecrement();
}
}
return React.createElement(
'div',
{ className: 'tb1__cell' },
React.createElement(
'div',
{ className: 'tb1__dial' },
React.createElement(
'button',
{
className: 'tb1__dial-control',
type: 'button',
ref: dialRef,
onKeyDown: keyboardAction,
onKeyUp: () => setIsKeydown(false),
'aria-description': percent,
style: shadowRotate,
},
React.createElement(
'span',
{ className: 'tb1__sr-only' },
children
)
)
)
);
}
function TB1Display({ children }) {
return React.createElement(
'div',
{ className: 'tb1__cell tb1__cell--display' },
children
);
}
function TB1Grid({ children }) {
return React.createElement('div', { className: 'tb1__grid' }, children);
}
function TB1Rec({ recording }) {
return React.createElement(
'div',
{ className: 'tb1__rec' },
React.createElement('span', {
className: `tb1__rec-light${
recording === true ? ' tb1__rec-light--on' : ''
}`,
}),
React.createElement(
'span',
{ className: 'tb1__display-label' },
'Rec'
)
);
}
function TB1Speakers() {
const holes = [];
const holeCount = 93;
for (let h = 0; h < holeCount; ++h) {
holes.push(
React.createElement('div', {
key: h,
className: 'tb1__speaker-hole',
})
);
}
return React.createElement(
'div',
{ className: 'tb1__cell tb1__cell--speakers' },
holes
);
}
</script>
</body>
</html>
